Solar Flare And Electric Grid
- Abhishek Thorat
- Jan 2, 2022
- 4 min read
The Sun provides us heat and energy that makes life possible on earth seems like a really good friend of ours but sometimes it doesn't as it suddenly vomits radiation and plasma in random directions.These solar flares and coronal mass ejections, or CMEs, can hit Earth and have serious consequences for humanity.
How solar flares are created?
The Sun seems pretty solid, but it's actually like a very hot ocean.So hot that it rips atoms into electrons and nuclei, all flowing around each other in a plasma. This plasma is pushed around and shaped by the Sun's magnetic field.On the Sun, the plasma—made of electrically charged protons and electrons—creates a magnetic field as they move,and this magnetic field then shapes the flow of particles.They're stuck in a dynamic feedback loop called a dynamo,which keeps the sun's magnetic field alive.
This magnetic field stores enormous amounts of energy and leaks out over the Solar System.It carries with it a constant trickle of solar plasma, like a light rain, known as the solar wind, creating a sort of space weather.But it isn't always calm and smooth.As the sun's plasma churns and flows around itself, its magnetic field gets all kinked and twisted.This creates magnetic knots that build up enormous amounts of energy.When the magnetic knots break—like a tangle of springs exploding outwards the Sun can vomit plasma and other awful things into the Solar System.

a) figure showing sun's magnetic field
These solar storms come in many types, like solar flares; a tidal wave of high-energy radiation.
They race through the solar system at the speed of light, sweeping up protons in the solar wind,
accelerating them into a high-speed solar-proton storm.Then, there are coronal mass ejections,
which rip millions or billions of tons of plasma from the Sun's atmosphere,catapulting it through the solar system at speeds of up to 9 million km/h.When these monsters hit us, nothing happens on Earth.While even smaller storms can damage satellites,affect radio communication,or be dangerous to astronauts,for people on the surface, space weather is harmless.Earth's atmosphere protects us from the worst effects of a solar flare by absorbing the blast of X-rays high up in the atmosphere,
well before it reaches the surface.The electrified plasma from a CME is deflected by the Earth's magnetic field,diverting the energy storm to the North and South Poles, where energetic particles fall into the atmosphere, causing the atmosphere to glow and creating beautiful auroras As with any sort of weather— most of the time, things are fine.Sometimes, there are hurricanes, though.
Or in the case of the Sun, solar superstorms. And we know that they happen once or twice every century. If one were to happen today, we would first detect strong solar flares,a sort of flash before the much more dangerous thunder. The thunder is a CME, consisting of billions of tons of hot magnetic plasma that crosses the 150 million kilometers between the Sun and Earth in less than a day. When it arrives, it causes a shock-wave that violently compresses the Earth's magnetic field
and transfers energy into the magnetosphere. But it can get worse. If the magnetic field of the CME is aligned to Earth's in just the right way, the two magnetic fields merge. As the magnetic cloud passes over Earth, it stretches the Earth's field into a long tail. Eventually, the energy stored in the tail becomes too much to contain. It snaps and explosively releases its energy towards Earth.

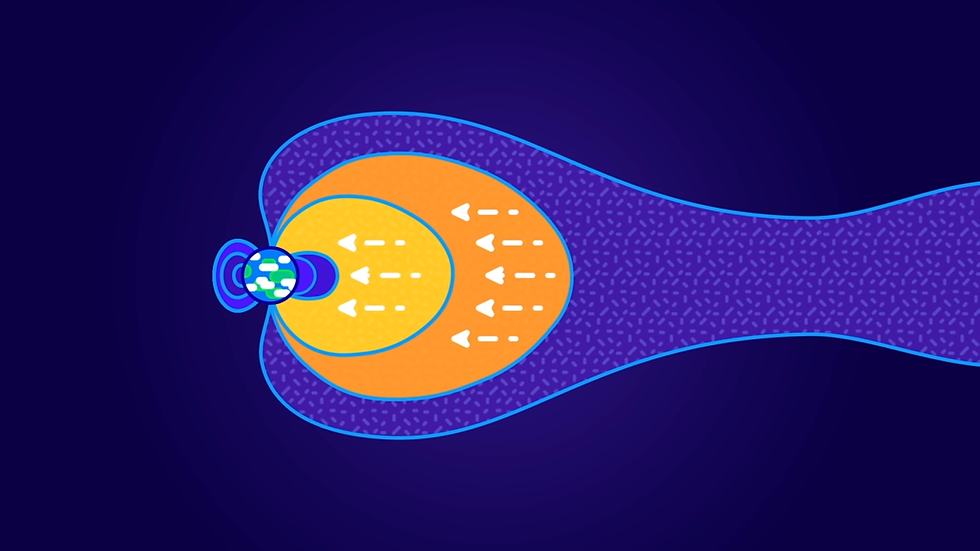

b) CME's effect on earths magnetic field
Harmful effects of solar storm
A few hundred years ago, nobody would have cared.This storm gushing over the Earth is not relevant for machines made out of meat and bones.But it's very relevant for machines made out of metal and wire. Remember the dynamo?Magnetism creates electric currents. Earth in the 21st century is covered in millions of kilometers of wires, transporting electricity, and a complex grid of machines, like transformers, that make this transfer possible.
A CME's energy can induce currents in our power grid that can either completely shut it down,
or worse, destroy the transformer stations that keep our grid running.This has happened already,
like when the Quebec power grid failed after a strong solar storm in 1989.in general, our engineers know how to deal with these storms, and so we usually don't even notice.
Recently Starlink satellites were struck by a geomagnetic storm so strong that 40 out of 49 satellites were destroyed and fell back to Earth before they could even be commissioned into space.
Are we ready for this?
In general, our engineers know how to deal with these storms, and so we usually don't even notice. Using data from NASA's Solar Dynamics Observatory, or SDO, scientists have developed a new model that successfully predicted seven of the Sun's biggest flares from the last solar cycle, out of a set of nine. As the CME doesn't travels at speed of light we can detect one and send advance warning and be prepared for it by simply disconnecting power stations.
The countries near to the poles are more susceptible to this so countries like Britain have additional wires laid down to dissipate the energy. Adding capacitor bank is another way to reduce its impact as the induced current in the power lines due to solar flares is DC, but this method is costly.
